Advancements in PROTACs for Cancer Therapy

Anti-apoptotic Proteolysis Targeted Chimeras (PROTACs) in Cancer Therapy

Muturi Njoka¹, Divya Kamath¹, Stefan H. Bossmann¹

  1.  Department of Cancer Biology, University of Kansas Medical Center, Kansas City, KS, USA

OPEN ACCESS

PUBLISHED: 31 January 2025

CITATION: Njoka, M., Kamath, D., et al., 2025. Anti-apoptotic Proteolysis Targeted Chimeras (PROTACs) in Cancer Therapy. Medical Research Archives, [online] 13(1).
https://doi.org/10.18103/mra.v13i1.6284

COPYRIGHT: © 2025 European Society of Medicine. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

DOI https://doi.org/10.18103/mra.v13i1.6284

ISSN 2375-1924


ABSTRACT

Targeted protein degradation is an emerging approach for novel drug discovery and basic research. Several degrader molecules have been developed including PROteolysis-TArgeting Chimeras (PROTACs), specific and nongenetic Inhibitor of Apoptosis protein (IAP)-dependent Protein Erasers (SNIPERs), IAP antagonist, ubiquitylase inhibitors, hydrophobic tagging molecules, and E3 modulators. The chimeric degrader molecules PROTACs and SNIPERs are made of linking a target protein-ligand to an E3 ubiquitin ligase binding ligand. This modular nature of these chimeric molecules supports versatile protein targets by substituting target ligands. They induce ubiquitylation and proteasomal degradation of the target protein in the cytosol via recruiting an E3 ubiquitin ligase to the target protein. The bridging of the target protein and the E3 ubiquitin ligase facilitates ubiquitylation of the protein and its proteasomal degradation. PROTACs chimeric molecules recruit von Hippel–Lindau or cereblon ubiquitin ligases, while SNIPERs induce simultaneous degradation of cIAP1/2 or XIAP together with the target proteins. Several B-cell Lymphoma 2 (BCL-2) family anti-apoptosis proteins BCL-2, BCL-XL, and MCL-1 are validated anticancer targets and are upregulated in various malignancies. Also, aberrant expression of cIAP1/2 and XIAP with a concomitant increase in apoptosis resistance has been reported. The dysregulation of BCL2 and IAP gene expression in cancer diseases is mainly caused by upregulation of the bromodomain and extra-terminal domain (BET) proteins. Degradation of the cellular anti-apoptosis proteins mentioned is a promising approach to induce apoptosis in tumor cells and overcome treatment resistance. Various types of protein degradation strategies have been developed and used. This article overviewed various chimeric compounds capable of inducing the degradation of anti-apoptosis proteins BCL2, BET, and IAP in cancer therapy.

Keywords: PROTACs, anti-apoptosis proteins, BCL2, BET, IAP, Cancer therapy

1. Introduction

Cancer is considered a global health problem, and despite the progress in treatment options, it will be responsible for an estimated number of 16.6 million deaths by 2040. Recent advances in cancer therapy including molecular targeted therapy have shown to be advantageous and, are preferred to the classical therapy approaches due to better efficacy and fewer side effects. The molecular targeted therapies which include small molecules and monoclonal antibodies, act specifically on the disease-causing pathway proteins and prevent activation of downstream pathways responsible for tumor growth and metastasis. Although these therapies have been used with substantial success, it’s limited to targeting only ~22% of the 20,300 protein-coding genes in the genome. The rest of the ~80% genome (non-protein coding) is considered undruggable using conventional small molecule inhibitors and hence cannot be used for targeted therapies. One other major limitation faced by targeted therapy is the development of drug resistance malignancies thus necessitating the development of novel strategies to improve cancer treatment and survival.

Targeted protein degradation (TPD), first proposed in 1999, utilizes the cell’s proteolysis-based machinery to eliminate the target protein. This concept was recognized as a novel therapeutic modality that could suppress any of the genome-coded proteins and, with recent advances in technology, TDP has reemerged as a major potential therapeutic tool. TPD technologies either, use the Ubiquitin-proteosome, endosome-lysosome, or autophagy-lysosome strategies to degrade the target proteins. The strategy is selected depending on the type of protein targeted. In this review, we will limit ourselves to the degradation of specific intracellular proteins, which can be carried out by one of the two pathways: the autophagy-lysosome system and/or the ubiquitin-proteosome system. In the autophagy-lysosome system, the autophagosome encapsulates intracellular proteins and organelles, and then degradation occurs by fusing with the lysosomes. In the contrary, the ubiquitin-proteosome system detects and degrades poly-ubiquitylated proteins into peptides using protease complex.

The PROteolysis TArgeting Chimeras (PROTACs) primarily use the Ub-proteosome pathway to degrade the targeted intracellular proteins. It is a small molecule consisting of 3 different parts; (i) a ligand to bind to the target protein, (ii) a ligand to bind to the E3 ligase to initiate degradation of the protein of interest, and (iii) a linker to connect both the ligands. This together forms a three-body polymer as shown in Figure 1. PROTACs assume a chimeric structure with E3 ubiquitin ligase or inhibitor of apoptosis protein (IAP) ligand linked to target protein binding ligand. This brings the target protein spatially closer to the E3 ligase or IAP which results in subsequent polyubiquitylation of the target protein and its proteasomal degradation. The E3 ubiquitin ligases used so far in PROTACs are phosphorylated peptides and small-molecule ligands.

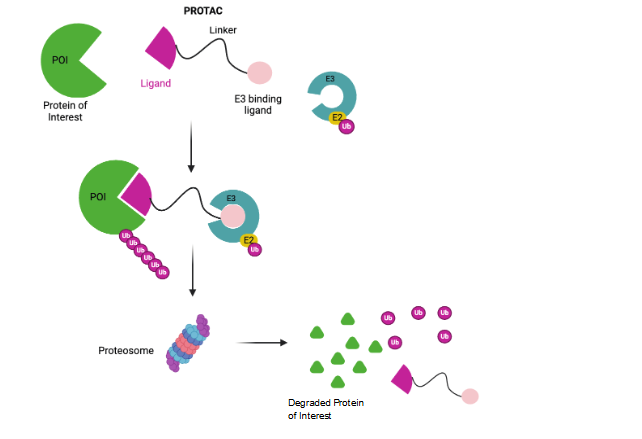

The mechanism of action of PROTACs. PROTACs are heterobifunctional containing a linker that connects a protein of interest binding ligand and E3 binding molecule. PROTACs stabilize the target protein and the E3-E2-Ubiquitin in a ternary complex that allows ubiquitylation and proteasomal degradation of the target protein. The PROTACs moiety is recycled for the next degradation cycle.
The mechanism of action of PROTACs. PROTACs are heterobifunctional containing a linker that connects a protein of interest binding ligand and E3 binding molecule. PROTACs stabilize the target protein and the E3-E2-Ubiquitin in a ternary complex that allows ubiquitylation and proteasomal degradation of the target protein. The PROTACs moiety is recycled for the next degradation cycle.

The PROTACs primarily use the ubiquitin-proteosome to induce target protein degradation in less than 24 hours. But in recent years they have been modified to utilize the proteosome, the autophagy, and the lysosome system. PROTACs-based technologies include Specific and Nongenetic IAP-dependent Protein ERasers (SNIPERs), auxin-inducible degron method, and E3 ubiquitin ligases modulators. One of the key advantages of these protein degraders is that any protein of interest can be targeted for degradation by rationally designing PROTACs or SNIPERs with substituted target ligands. Recently, PROTACs and SNIPERs which show tumor regression in vivo have been developed by refining E3 ubiquitin ligase ligands. CRL4 cereblon, CRL2 VHL, and IAPs are the most commonly used E3 ubiquitin ligases in cancer therapy. PROTACs and SNIPERs are used to degrade many target proteins as reviewed elsewhere. Over the last two decades, these molecules have seen a lot of advancement and development of subtypes being used in clinical trials. Several PROTACs are designed to induce protein degradation using antiapoptotic IAP proteins. This review will focus on the advances in PROTACs and SNIPERs targeting anti-apoptosis proteins including BCl2 family, IAP, and BET proteins.

2. Apoptosis and anti-apoptotic proteins

Apoptosis is a tightly regulated and evolutionally conserved process across metazoans. In vertebrates, it plays a critical role in proper morphological development, maintaining tissue homeostasis, and preventing cancer. Apoptosis is triggered by the internal or external stimuli that activate caspase proteases, either through an intrinsic pathway (mitochondrial outer membrane permeabilization (MOMP) or extrinsic pathway (death-receptors (Fas and DR4/5) ultimately leading to cell death. Dysregulation of apoptosis is one of the hallmarks of cancer and can increase resistance to treatment in cancer cells. The intrinsic apoptosis pathway, triggered by cell distress signals, is regulated by the B-cell lymphoma-2 (BCL-2) family of proteins, which includes both pro-apoptotic and anti-apoptotic members.

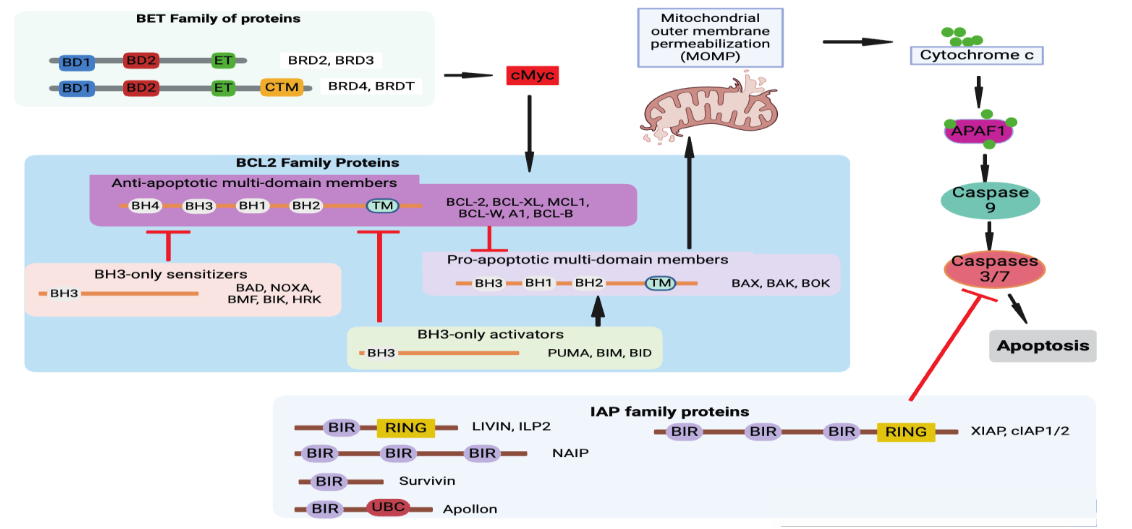

Anti-apoptosis proteins in cancer. Expression of BET proteins in malignancies leads to increased expression of BCL-2 anti-apoptotic proteins via cMyc preventing cell apoptosis and promoting cell growth and division. IAP family protein (XIAP) are also capable of inhibiting apoptosis by inactivating caspase 3/7/9 and supporting cell growth.
Anti-apoptosis proteins in cancer. Expression of BET proteins in malignancies leads to increased expression of BCL-2 anti-apoptotic proteins via cMyc preventing cell apoptosis and promoting cell growth and division. IAP family protein (XIAP) are also capable of inhibiting apoptosis by inactivating caspase 3/7/9 and supporting cell growth.

Several anti-apoptotic B-cell lymphoma 2 (BCL-2) family proteins BCL-2, BCL-XL, and MCL-1 are validated anticancer targets. The cancer cells upregulate anti-apoptotic proteins that inhibit pro-apoptotic BCL-2 members to dampen apoptosis. In addition, the deactivation of pro-apoptotic BH3-alone can lead to treatment-resistant cancers. The anti-apoptotic BCL-2 proteins are critical in tumor growth, and thus BH3 mimetic drugs have been developed to bind and inhibit them. These BH3 mimetics include Navitoclax, S63845, Venetoclax, and AMG176. They induce apoptosis by releasing BH3-only proteins from the anti-apoptotic BCL-2 proteins which consequently activate BAX and BAK to cause MOMP. Besides, pro- and anti-apoptosis protein activity can be modulated by protein-protein interaction between BCL-2 family members or various non-BCL-2 family proteins. The levels of BCL-2 family proteins are regulated at the transcriptional level by p53 and MYC to drive apoptosis in proliferative or damaged cells. Similarly, the immune cell activation transcription factors like STAT3 and NF-κB upregulate BCL-2 to support immune response and promote cell survival. These transcription factor levels are regulated in larger part by epigenetic modulation.

The bromodomain and extra-terminal domain (BET) family members such as bromodomain-containing protein 2 (BRD2), BRD3, BRD4, and Bromodomain Testis Associated (BRDT), are epigenetic readers that recognize acetylated proteins like histones as well as transcription factors. Their function has also been implicated in RNA translation and many other roles in cell apoptosis, immune modulation, and uncontrolled proliferation. The transcriptional regulation between pro-apoptosis, anti-apoptosis, and their related transcription factors, is balanced by protein degradation through the ubiquitin-proteosome system. BRD4 exhibits superiority in inhibiting tumor growth and is overexpressed in cancer cells. It results in aberrant expression of its downstream genes and oncogenes like c-Myc and Bcl-2 in various malignancies.

3. PROTACs and anti-apoptotic proteins

Several anti-apoptosis B-cell lymphoma 2 (BCL-2) family proteins BCL-2, BCL-XL, and MCL-1 are validated anticancer targets. Several PROTACs are designed to induce protein degradation using antiapoptotic IAP proteins. Here we present a review of the PROTACs with apoptosis-related proteins (BCL-2, BET and IAP) as ligands for cancer therapy and treatment.

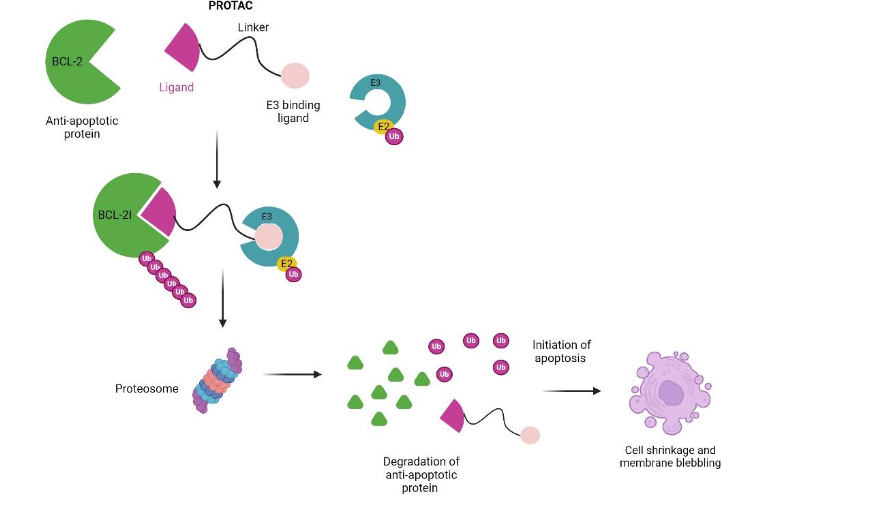

PROTACs targeting anti-apoptotic proteins. The PROTACs tag the BCL-2 protein with Ub and sets it up for proteosome degradation. Once the anti-apoptotic proteins are degraded, the process of apoptosis is initiated killing damaged/tumor cells.
PROTACs targeting anti-apoptotic proteins. The PROTACs tag the BCL-2 protein with Ub and sets it up for proteosome degradation. Once the anti-apoptotic proteins are degraded, the process of apoptosis is initiated killing damaged/tumor cells.

The BCL-XL overexpression has been reported in leukemia, lymphomas, and solid tumors, and is also implicated in chemotherapy resistance in some malignancies. These anti-apoptosis proteins are extensively targeted in cancer treatment using small-molecule inhibitors. These inhibitors include BCL-2 inhibitor venetoclax (ABT199), BCL-XL inhibitor A-1331852, BCL-XL/2 dual inhibitor navitoclax (ABT263), and MCL-1 inhibitor S63845. Venetoclax (ABT199) is FDA-approved for cancer treatment, but navitoclax (ABT263) inhibits BCL-XL in both tumor cells and platelets to cause on-target toxicity thrombocytopenia. BCL-XL PROTACs were developed to prevent on-target toxicity of BCL-XL inhibitors to platelets. DT2216 PROTAC is currently the most used to target BCL-XL to the von Hippel-Lindau (VHL) E3 ligase. It exerts cytotoxic effects on cancer cells and spares platelets with lower levels of VHL. DT2216 consists of dual BCL-XL/2 inhibitor ABT263 linked to VHL ligand pomalidomide and several studies have shown an increase in PROTAC efficacy in cancer cells.

Chimeric compounds targeting anti-apoptosis proteins
BCL2 target protein E3 ubiquitin ligase ligand BCL2 protein inhibitor PROTAC Combination drug Study model Cancer type Reference
BCL-XL VHL ABT263 (dual inhibitor BCL-XL/2) DT2216 Sotorasib (AMG510) H358, MIA PaCa-2 and SW837 KRASG12C-mutated cells xenografts in mice non-small cell lung cancer (NSCLC), colorectal cancer, Pancreatic cancer 40
VHL ABT263 DT2216 Gemcitabine G-68 cells xenografts into NSG mice, PDXs mouse model Pancreatic cancer 41
VHL ABT263 PZ703b Mivebresib (BET inhibitor ABBV-075) Human bladder cancer cell lines Bladder cancer 45
VHL ABT263 DT2216 Irinotecan Fibrolamellar hepatocellular carcinoma PDXs into NSG mice Fibrolamellar hepatocellular carcinoma (FLC) 42
VHL, CRBN ABT263 DT2216, XZ739 n/a MOLT-4 cell line Acute lymphoblastic leukemia (ALL) 46
VHL, CRBN ABT263 DT2216, PZ15227 n/a PDXs in C57BL/6, BALB/c and NSG mice Renal cell carcinoma (RCC) 43
VHL ABT263 DT2216 Venetoclax (ABT199) T cell prolymphocytic leukemia (T-PLL) PDXs in NSG mice, MyLa cells xenografts T cell lymphomas (TCLs) 38
VHL ABT263 DT2216 n/a Human T-ALL cell lines T-cell acute lymphoblastic leukemia (T-ALL) 44
CRBN A1155463 XZ424 n/a MOLT-4 cell line Acute lymphoblastic leukemia (ALL) 47
VHL A1155463 PROTAC 6 n/a THP1 cell line Leukemia 48
VHL ABT263 DT2216 (753b epimer) n/a PDXs in NSG mice Acute myeloid leukemia (AML) 39

B. BET PROTACs

BET target protein E3 ubiquitin ligase ligand BET inhibitor PROTAC Combination drug Study model Cancer type Reference
BRD1 CRBN JQ1, OTX ARV-825 n/a n/a Burkitt’s lymphoma 69
BRD2 CRBN JQ1, OTX ARV-825 n/a n/a Burkitt’s lymphoma 69
BRD2 VHL JQ1 MZ1 n/a n/a Cervical carcinoma 8
BRD2 CRBN JQ1 dBET1 n/a n/a Leukemia 93
BRD2 CRBN BETi-211 BETd-246 n/a n/a Triple negative breast cancer 94
BRD3 VHL JQ1 MZ1 n/a n/a Cervical carcinoma 8
BRD3 CRBN JQ1 dBET1 n/a n/a Leukemia 93
BRD3 CRBN BETi-211 BETd-246 n/a n/a Triple negative breast cancer 94
BRD4 CRBN JQ1, OTX ARV-825 n/a n/a Burkitt’s lymphoma 69
BRD4 VHL JQ1 MZ1 n/a n/a Cervical carcinoma 8
BRD4 CRBN JQ1 dBET1 n/a n/a Leukemia 93

BET target protein E3 ubiquitin ligase ligand BET inhibitor PROTAC Combination drug Study model Cancer type Reference
CRBN BETi-211 BETd-246 n/a n/a n/a Triple negative breast cancer 94
VHL JQ1 MZ1 n/a n/a Triple negative breast cancer 51
VHL JQ1 ARV-825 n/a n/a JQ1 resistant cells 51
CRBN Oxazepines, JQ1, OTX QCA570, ARV-825 n/a n/a Leukemia, Burkitt’s lymphoma 69,95
CRBN, VHL JQ1 BETd-260 n/a n/a Osteosarcoma, Leukemia 69
VHL BETi ARV-771 n/a 4T1 cells tumor grafted BALB/c mice Breast cancer 67
MDM2 JQ1 A1874 n/a HCT116 cells xenografts into SCID mice Colon cancer 68
VHL OTX015 ARV-825 Doxorubicin GL261 cells xenografts into C57BL/6 mice Glioma 53
CRBN HJB-97, JQ1 BETd-260 n/a MNNG/HOS cells xenografts into BALB/c, PDXs into NOD SCID mice Osteosarcoma 69
CRBN HJB-97, JQ1 BETd-260 n/a HCC cell lines xenografts into BALB/c mice Hepatocellular carcinoma (HCC) 70
VHL OTX015 ARV-825 n/a TPC1 cells xenografts into SCID mice Thyroid carcinoma 55
VHL OTX015, BETi ARV-825 Ibrutinib, Venetoclax, Palbociclib Z138 cells xenografts into NSG mice Mantle cell lymphoma (MCL) 61
VHL OTX015, BETi ARV-825, ARV-771 Ruxolitinib HEL92.1.7 cells engrafted into NSG mice Acute myeloid leukemia (AML) 63
VHL JQ1 ARV-825 n/a Human pancreatic cancer cell lines Pancreatic cancer 52
VHL JQ1, OTX015 MZ1, ARV-825 Docetaxel, Cisplatin, Olaparib MDA-MB-231 cells xenografts into BALB/c nu/nu mice Triple negative breast cancer 52
VHL JQ2 ARV-825 n/a Burkitt’s lymphoma cell lines Burkitt’s lymphoma (BL) 62
VHL JQ1, OTX015 MZ1, ARV-825 Trastuzumab BT474 cells xenografts in BALB/c nu/nu mice HER2+ breast cancer 63
VHL, CRBN JQ1, BETi ARV-825, ARV-771 n/a OCI-AML5 cells engrafted into NSG mice Acute myeloid leukemia (AML) 64
CRBN WWL0245 Dual BET/PLK1 PROTAC n/a Human prostate cancer cell lines AR+ prostate cancer 65
CRBN JQ1 BETd-246, BETd-260, BETd-228, BETd-570 n/a Syngeneic tumors into BALB/c mice, PDXs in NSG mice Colorectal cancer 66
VHL JQ1 MZ1 n/a P388-D1 cells xenograft into BALB/c mice Acute myeloid leukemia (AML) 67
CRBN JQ1 dBET1 n/a Human AML cell lines Acute myeloid leukemia (AML) 68
CRBN Oxazepines, JQ1, OTX QCA570 n/a Human bladder cancer cell lines Bladder cancer 69
CRBN OTX015 ARV-825 n/a HGC27 cells xenografts into nude mice Gastric cancer 70
CRBN, VHL JQ1 BETd-260 (ZBC260) n/a Human Ewing sarcoma cell lines Ewing sarcoma 71

C. IAP SNIPERs

IAP target protein E3 ubiquitin ligase ligand IAP protein inhibitor SNIPER Combination drug Study model Cancer type Reference
XIAP CRBN AZD5582 TD1092 n/a Human breast cancer and ovarian cancer cell lines Breast cancer, Ovarian cancer 84
XIAP CRBN AZD5582 n/a n/a HCT116 cell line Colorectal cancer 85
IAPs CRBN, VHL CST530 hetero-SNIPER n/a Leukemia and lymphoma cell lines Leukemia, Lymphoma 86
IAPs CRBN, VHL LCL161 SNIPER 8a n/a Leukemia cell lines Leukemia 87
cIAP CRBN, VHL AZD5582 CST651 n/a AML, ALL, breast cancer cell lines AML, ALL, breast cancer 88

Khan et al reported a combination of synergistic effects of DT2216 with a covalent inhibitor of mutant KRASG12C sotorasib (AMG510) in mutant NSCLS, CRC, and pancreatic cancer mouse xenografts. The study showed that sotorasib induced apoptotic priming and enabled DT2216 to induce apoptosis in KRASG12C-mutated cancer cells. Pancreatic cancer gemcitabine resistance was dampened when PDX mouse models were treated with a combination of DT2216 and gemcitabine. Fibrolamellar hepatocellular carcinoma (FLC) PDX mice tumor growth was reduced significantly when mice were treated with the combination of a topoisomerase I (TOPO1) inhibitor irinotecan and DT2216. This supports the PROTAC mechanism of action’s ability to negate chemotherapy drug resistance. Kolb et al used two BCL-XL degrading PROTACs (DT2166 and PZ15227) to target the highly BCL-XL expressing TITreg population from renal cell carcinoma (RCC). The study provides the rationale for eliminating Tregs within tumors by degrading intracellular pro-survival factors like BCL-XL to potentiate immunotherapy. Another study investigated the utility of BCL-XL targeting DT2216 combined with a selective BCL-2 inhibitor. The study reported a synergistically improved survival in the TCL PDX mouse model. After exposing T-ALL cells with varying concentrations of DT2216, Jaiswal et al found a decrease in BCL-XL degradation, although they argued it was in a few cells. The data warranted a wider clinical trial that recruits all the T-ALL subsets. The BCL-XL degraders include PZ703b which like DT2216 targets BCL-XL to VHL proteasomal degradation. When combined with mivebresib, PZ703b induced apoptosis in bladder cancer cells via the intrinsic mitochondrial pathway. Other PROTACs also exhibited higher cytotoxic effects on cancer cells compared to the BCL-XL inhibitors including XZ739 on ALL cells, PZ15227 on renal cell carcinoma, XZ424 on ALL cells, and PROTAC 6 on THP1 cells.

Bromodomain and Extra-Terminal (BET) Domain Proteins PROTACs

BET proteins PROTACs have been largely studied in leukemia and lymphoma (Table 1). Transcription factors were previously considered to be undruggable therefore, BET protein inhibitors (BETi) gave an alternative to target transcription⁴⁹. These inhibitors have shown antitumoral activity in hematological malignancies and solid tumors⁹⁰. BET PROTACs were developed to potentiate and prolong the pharmacological effect of BETi. BET PROTACs have shown increased antitumor activity even in preclinical models that were resistant to BETi⁵².

The BET PROTAC ARV-825 has been most widely used in cancer treatment (Table 1). ARV-825 is a chimera of BET OTX015 (linked to CHI), CRBN ligands of E3 ubiquitin ligases. Two studies by He et al⁵⁶⁷ showed synergistic suppression of tumor growth in glioma and colorectal cancer cells by combination treatment with DOX and ARV-825 in the cRGD-P nanoparticle system. The treatment arrested the cell to G2/M phase and activated apoptosis-related pathways like caspase cascade, downregulation of Bcl-2, and upregulating Bax. ARV-825 inhibited TPC-1 xenograft tumor growth in SCID mice⁵⁸, human gastric cancer cells xenografts in nude mice⁷⁰, and T-ALL PDXs in nude mice⁷⁵. PROTAC ARV-825 showed antiproliferative effects and induced apoptosis in cholangiocarcinoma cells⁷⁹, melanoma cells⁸⁰, pancreatic cancer cells⁸⁶, and Burkitt’s lymphoma cells⁸². A combination of two BET PROTACs ARV-825 and ARV-771 (ARV-771 has a pan BETi), with a covalent inhibitor of Bruton’s tyrosine kinase ibrutinib dramatically inhibited the growth and improved survival of NSG mice engrafted with ibrutinib-resistant Z138 MCL cells⁵⁹, and induced apoptosis in human AML cell lines⁶⁴. Co-treatment with ARV-825 and JAK inhibitor ruxolitinib synergistically induced a high level of apoptosis in ruxolitinib-resistant AML cells⁶⁰. However, Nobles-Lopez et al⁵² reported no synergistic effects in co-treatment with PROTACs MZ1 and ARV-825 with docetaxel, cisplatin, or Olaparib, in BETi-resistant TNBC cells. Zhang et al⁷⁸ study evaluated the antitumoral activity of PROTACs ARV-825 and ARV-763 with dexamethasone, BH3 mimetics, and Akt pathway inhibitors. The study reported that PROTACs were active against myeloma, overcame mechanisms of drug resistance, combined synergistically with conventional and novel therapeutics, and showed activity in vivo.

Other BET PROTACs investigated include ARV-771 which induced tumor cell apoptosis when combined with Raf inhibitor sorafenib on HCC cell xenografts in nude mice⁷². This study showed that ARV-771 and sorafenib synergistically inhibited the growth of HCC cells. Co-treatment with ARV-771 and Bruton’s tyrosine kinase (BTK) inhibitor ibrutinib or anti-apoptotic BCL2 inhibitor venetoclax showed synergistic lethal activity in B cell lymphoma PDXs in NSG mice⁷⁶. ARV-771 was derivatized to esterase cleavable maleimide linker (ECM1) and it was shown to accumulate in 4T1 tumor grafts in BALB/c mice to induce BRD4 deficiency-related apoptosis⁵⁴. BET PROTAC AR87 (synthesized based on BET inhibitor JQ1 and MDM2) inhibited the growth of colon cancer tumor xenografts in SCID mice by both BRD4-dependent and -independent mechanisms⁵⁵. BET-260 (synthesized based on BET inhibitor JQ1) was shown to degrade BET proteins as well as triggering apoptosis in xenograft osteosarcoma tumor tissue⁴⁹ and hepatocellular carcinoma cells⁵⁷ PDX xenografts in BALB/c mice⁷¹.

PROTAC MZ1 (based on the BETi JQ1) exhibited synergistic/additive interaction with anti-HER2 monoclonal antibody trastuzumab in HER2+ breast tumors⁵³. The study claimed the antitumor effect was via cell growth inhibition, downregulation of transcriptional genes, and DNA damage apoptosis. Another study by Ma et al⁶⁷ indicated MZ1 downregulated expression of c-Myc and ANP32B genes in AML cells. Zhang et al⁷³ showed that MZ1 decreased the proliferation and normal cell cycle of MYC-amplified neuroblastoma cells. PROTAC dBET1 induced broad anti-cancer effects on molecularly different AML cells⁶⁸. A pan BET degrader QCA570 potently induced BRD4 degradation and decreased EZH2 and c-MYC levels⁶⁹. QCA570 induced cell apoptosis and cell cycle arrest in bladder cancer cells. The PROTAC dBET57 exhibited antitumoral activity in vivo and in vitro by targeting super enhancer-related genes ZMYND8 and TBX3 in neuroblastoma xenografts and frequency, high selectivity, active in drug resistance disease, and target nonenzymatic functions.


Inhibitors of Apoptosis (IAP) Proteins PROTACs

In this review article, SNIPERs are treated as a subgroup of PROTACs which induce protein degradation through IAPs. IAPs interact with caspases via BIR domain to dampen apoptosis. Also, inhibitors of IAPs are designed to interact with BIR domain to both block apoptosis inhibitory activity of IAPs and induce auto-ubiquitylation and degradation of IAPs. Human beings have eight IAPs (XIAP, cIAP1/2, ML-IAP, ILP2, survivin, NAIP, and BRUCE), of which XIAP1, cIAP1/2 exhibit E3 ubiquitin ligase activity⁹¹, on which SNIPERs induce degradation⁹². The binding of SNIPER to cIAP rapidly induces cIAP degradation⁹³, but XIAP degradation requires XIAP-SNIPER-target protein ternary complex formation⁹². Therefore, both XIAP and target protein are simultaneously ubiquitylated only if they interact and induce XIAP conformational changes to expose its lysine to E2 ubiquitin-conjugating enzymes.

There is reported aberrant expression of cIAP1/2 and XIAP with a concomitant increase in drug resistance, and their downregulation sensitizes cancer cells to apoptosis⁹⁴. Currently, clinical development of several antagonists that inhibit IAP functions is underway. TD101092 is a IAP-cereblon SNIPER consisting the SMAC mimetic AZD5582 as cIAP1/2/XIAP ligand and thalidomide as cereblon ligand⁸⁴. The study showed that SNIPER inhibited breast and ovarian cancer cell migration and invasion leading to cellular apoptosis. Additionally, the SNIPER reduced tumor necrosis factor-alpha (TNFα)-induced innate immune response. Ng et al⁸⁶ designed heterobifunctional SNIPERs by either linking VH298 (VHL ligand) or pomalidomide (CRBN ligand) to CST530 (IAP ligand). The SNIPER treatment led to potent, rapid, and preferential depletion of lymphoma and leukemia cellular IAPs including XIAP knockdown, which is rarely observed for monovalent and homo-bivalent IAP inhibitors. Another study by Steinbach et al⁸⁸ combined a SNIPER CST651 (consisting of IAP ligand and VHL ligand) with CDK6-specific VHL targeting PROTACs (YKL-06-102 and BSJ-03-123) on leukemia and breast cancer cells. The study results showed that IAP-based PROTACs degraded both CDK4/6 and IAPs resulting in synergistic suppression of cancer cell growth. A monovalent SNIPER 8 which utilized the LCL161 IAP ligand efficiently degraded BCL-XL in malignant T-cell lymphoma cell line MyLa-1929⁸⁷.

4. Conclusion

The antibodies or small molecule enzyme inhibitors such as kinase inhibitors induce their effects by binding and occupying the target protein’s active site. This mechanism of action is prone to drug resistance. Also, they target only 25%-30% of known cellular proteins for clinical application. The remaining 70%-75% of genome proteins so-called “undruggable” consist of scaffolding proteins, transcription factors, cofactors, and other non-enzymatic proteins, which can be targeted for degradation with PROTACs. The event-driven mechanism of action involved in the PROTACs offers several benefits including; being catalytic, having high potency for longer, versatile target space, active at lower dose and frequency, high selectivity, active in drug resistance disease, and target nonenzymatic functions.

PROTACs are chimeric compounds consisting of a target ligand, an E3 ubiquitin ligase ligand, and a linker. For a ligand to be incorporated in a PROTAC, it requires only to bind the target protein. Therefore, ligands with no or insufficient inhibitory activity or bind any of the multiple domains of the target protein can be used. This technology is used to circumvent drug resistance by targeting different domains in oncogenic kinases since resistance to kinase inhibitors is often attributed to mutations in the kinase domain. Furthermore, nucleic acids and peptides are used as target protein ligands. More E3 ubiquitin ligases should be added to the three currently used PROTACs (VHL, CRBN, and IAP) since there are more than 600 cellular E3 ubiquitin ligases. Also, it is paramount to investigate whether these E3s are differentially expressed in different tissues or malignancies. In addition, hetero-PROTACs that combine different E3s have shown superior target protein degradation compared to their monovalent E3s PROTACs. The PROTAC degradation activity, pharmacological properties, and stability are determined by the chemical and physiological aspects of the linker used. Similarly, the selection of proteins that play a major oncogenic role in specific malignancies is paramount.

PROTACs have been used successfully to reduce oncoproteins in cancer therapy. However, their use in clinical studies is strained by several limitations. Due to their complex structure usually with high molecular weight, PROTACs have poor pharmacokinetics profiles in vivo. In addition, PROTACs exert their effects by irreversibly inducing target protein degradation which can lead to higher irreversible toxicity in vivo. Similarly, PROTACs off-target proteins are degraded resulting in severe physiological consequences. As such, toxicological studies are paramount in the development of PROTACs therapies in cancer. The use of drug delivery systems like antibody-drug conjugation and nanoformulation, can improve average lipophilicity and in vitro stability. Furthermore, the PROTAC size can be resolved by combinatorial chemistry approaches.

In conclusion, more than two decades ago the concept of targeted protein degradation using a bifunctional molecule was proposed (Kenten patent 1999). PROTAC technology is a feasible and attractive approach for developing novel drugs against currently undruggable oncoproteins. In 2019, the first phase I clinical study of PROTACs was started, and more than 10 clinical trial studies followed shortly. By January 2025, an ongoing study was recruiting participants to investigate the effects of DT2216 in relapsed or refractory solid tumors and fibrolamellar carcinoma treatment. More clinical studies are required to support this promising technology.

Materials and Methods

In the current review, we included published material on PROTACs targeting antiapoptotic family proteins and have or are currently being used for cancer therapy. The antiapoptotic family proteins researched and reported were BET, BCL2, and IAP. A bibliographic search was carried out in PubMed (https://pubmed.ncbi.nlm.nih.gov), Web of Science (www.webofscience.com), and Google Scholar citation (www.scholar.google.com). References were searched using the following terms: protac* AND cancer AND apoptosis AND BCL/BET/IAP/MCL1. Data and inferences from 47 published articles were synthesized and included in this review as shown in figure 4.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Cancer Statistics – NCI. https://www.cancer.gov/about-cancer/understanding/statistics (2015).
  2. Lee, Y. T., Tan, Y. J. & Oon, C. E. Molecular targeted therapy: Treating cancer with specificity. European journal of pharmacology 834, 188–196 (2018).
  3. Shawver, L. K., Slamon, D. & Ullrich, A. Smart drugs: tyrosine kinase inhibitors in cancer therapy. Cancer cell 1, 117–123 (2002).
  4. Finan, C. et al. The druggable genome and support for target identification and validation in drug development. Science translational medicine 9, eaag1166 (2017).
  5. Zhao, L., Zhao, J., Zhong, K., Tong, A. & Jia, D. Targeted protein degradation: mechanisms, strategies and application. Signal transduction and targeted therapy 7, 113 (2022).
  6. Li, R. et al. Proteolysis-targeting chimeras (PROTACs) in cancer therapy: present and future. Molecules 27, 8828 (2022).
  7. Yim, W. W.-Y. & Mizushima, N. Lysosome biology in autophagy. Cell discovery 6, 6 (2020).
  8. Zengerle, M., Chan, K.-H. & Ciulli, A. Selective small molecule induced degradation of the BET bromodomain protein BRD4. ACS chemical biology 10, 1770–1777 (2015).
  9. Wang, S., He, F., Tian, C. & Sun, A. From PROTAC to TPD: Advances and Opportunities in Targeted Protein Degradation. Pharmaceuticals 17, 100 (2024).
  10. Naito, M., Ohoka, N. & Shibata, N. SNIPERs—Hijacking IAP activity to induce protein degradation. Drug Discovery Today: Technologies 31, 35–42 (2019).
  11. Nishimura, K., Fukagawa, T., Takisawa, H., Kakimoto, T. & Kanemaki, M. An auxin-based degron system for the rapid depletion of proteins in nonplant cells. Nature methods 6, 917–922 (2009).
  12. Buckley, D. L. & Crews, C. M. Small-Molecule Control of Intracellular Protein Levels through Modulation of the Ubiquitin Proteasome System. Angewandte Chemie International Edition 53, 2312–2330 (2014).
  13. Ohoka, N. et al. Derivatization of inhibitor of apoptosis protein (IAP) ligands yields improved inducers of estrogen receptor α degradation. Journal of Biological Chemistry 293, 6776–6790 (2018).
  14. Liu, J. et al. PROTACs: a novel strategy for cancer therapy. in Seminars in Cancer Biology vol. 67 171–179 (Elsevier, 2020).
  15. Ito, T. Protein degraders-from thalidomide to new PROTACs. The Journal of Biochemistry mvad113 (2023).
  16. Singh, R., Letai, A. & Sarosiek, K. Regulation of apoptosis in health and disease: the balancing act of BCL-2 family proteins. Nature reviews Molecular cell biology 20, 175–193 (2019).
  17. Ke, F. F. et al. Embryogenesis and adult life in the absence of intrinsic apoptosis effectors BAX, BAK, and BOK. Cell 173, 1217–1230 (2018).
  18. Hanahan, D. Hallmarks of cancer: new dimensions. Cancer discovery 12, 31–46 (2022).
  19. Yap, J. L., Chen, L., Lanning, M. E. & Fletcher, S. Expanding the cancer arsenal with targeted therapies: Disarmament of the antiapoptotic Bcl-2 proteins by small molecules: Miniperspective. Journal of Medicinal Chemistry 60, 821–838 (2017).
  20. Brahmbhatt, H., Oppermann, S., Osterlund, E. J., Leber, B. & Andrews, D. W. Molecular pathways: leveraging the BCL-2 interactome to kill cancer cells—mitochondrial outer membrane permeabilization and beyond. Clinical Cancer Research 21, 2671–2676 (2015).
  21. Lopez, A. et al. Co-targeting of BAX and BCL-XL proteins broadly overcomes resistance to apoptosis in cancer. Nature communications 13, 1199 (2022).
  22. Kotschy, A. et al. The MCL1 inhibitor S63845 is tolerable and effective in diverse cancer models. Nature 538, 477–482 (2016).
  23. Kale, J., Osterlund, E. J. & Andrews, D. W. BCL-2 family proteins: changing partners in the dance towards death. Cell Death & Differentiation 25, 65–80 (2018).
  24. Mitchell, K. O. et al. Bax is a transcriptional target and mediator of c-myc-induced apoptosis. Cancer research 60, 6318–6325 (2000).
  25. Grossmann, M. et al. The anti-apoptotic activities of Rel and RelA required during B-cell maturation involve the regulation of Bcl-2 expression. The EMBO journal 19, 6351–6360 (2000).
  26. Roe, J.-S., Mercan, F., Rivera, K., Pappin, D. J. & Vakoc, C. R. BET bromodomain inhibition suppresses the function of hematopoietic transcription factors in acute myeloid leukemia. Molecular cell 58, 1028–1039 (2015).
  27. Wang, N., Wu, R., Tang, D. & Kang, R. The BET family in immunity and disease. Signal transduction and targeted therapy 6, 23 (2021).
  28. Yang, H., Wei, L., Xun, Y., Yang, A. & You, H. BRD4: An emerging prospective therapeutic target in glioma. Molecular Therapy-Oncolytics 21, 1–14 (2021).
  29. Silke, J. & Meier, P. Inhibitor of apoptosis (IAP) proteins–modulators of cell death and inflammation. Cold Spring Harbor perspectives in biology 5, a008730 (2013).
  30. Vogler, M. Targeting BCL2-proteins for the treatment of solid tumours. Advances in medicine 2014, (2014).
  31. Ngoi, N. Y. L. et al. Targeting mitochondrial apoptosis to overcome treatment resistance in cancer. Cancers 12, 574 (2020).
  32. Hantusch, A., Rehm, M. & Brunner, T. Counting on Death–Quantitative aspects of Bcl-2 family regulation. The FEBS Journal 285, 4124–4138 (2018).
  33. Souers, A. J. et al. ABT-199, a potent and selective BCL-2 inhibitor, achieves antitumor activity while sparing platelets. Nature medicine 19, 202–208 (2013).
  34. Leverson, J. D. et al. Exploiting selective BCL-2 family inhibitors to dissect cell survival dependencies and define improved strategies for cancer therapy. Science translational medicine 7, 279ra40-279ra40 (2015).
  35. Tse, C. et al. ABT-263: a potent and orally bioavailable Bcl-2 family inhibitor. Cancer research 68, 3421–3428 (2008).
  36. Deeks, E. D. Venetoclax: first global approval. Drugs 76, 979–987 (2016).
  37. Kaefer, A. et al. Mechanism-based pharmacokinetic/pharmacodynamic meta-analysis of navitoclax (ABT-263) induced thrombocytopenia. Cancer chemotherapy and pharmacology 74, 593–602 (2014).
  38. He, Y. et al. DT2216-a Bcl-xL-specific degrader is highly active against Bcl-xL-dependent T cell lymphomas. J Hematol Oncol 13, 95 (2020).
  39. Jia, Y. et al. Dual BCL-XL/2 Protac 753B Not Only Potently Induces Apoptosis in Venetoclax-Resistant Primary AML Cells but Also Effectively Eliminates Chemotherapy-Induced Senescent AML Cells. Blood 140, 3347–3349 (2022).
  40. Khan, S. et al. BCL-XL PROTAC degrader DT2216 synergizes with sotorasib in preclinical models of KRASG12C-mutated cancers. J Hematol Oncol 15, 23 (2022).
  41. Thummuri, D. et al. Overcoming Gemcitabine Resistance in Pancreatic Cancer Using the BCL-XL-Specific Degrader DT2216. Mol Cancer Ther 21, 184–192 (2022).
  42. Xu, Y., Lei, Z., Zhu, J. & Wan, L. Mivebresib synergized with PZ703b, a novel Bcl-xl PROTAC degrader, induces apoptosis in bladder cancer cells via the mitochondrial pathway. Biochem Biophys Res Commun 623, 120–126 (2022).
  43. Shebl, B. et al. Targeting BCL-XL in fibrolamellar hepatocellular carcinoma. JCI Insight 7, e161820 (2022).
  44. Zhang, X. et al. Discovery of PROTAC BCL-XL degraders as potent anticancer agents with low on-target platelet toxicity. Eur J Med Chem 192, 112186 (2020).
  45. Kolb, R. et al. Proteolysis-targeting chimera against BCL-XL destroys tumor-infiltrating regulatory T cells. Nat Commun 12, 1281 (2021).
  46. Jaiswal, A. et al. Resistance to the BCL-XL degrader DT2216 in T-cell acute lymphoblastic leukemia is rare and correlates with decreased BCL-XL proteolysis. Cancer Chemother Pharmacol 91, 89–95 (2023).
  47. Zhang, X. et al. Utilizing PROTAC technology to address the on-target platelet toxicity associated with inhibition of BCL-XL. Chem Commun (Camb) 55, 14765–14768 (2019).
  48. Chung, C. et al. Structural insights into PROTAC-mediated degradation of Bcl-xL. ACS Chemical Biology 15, 2316–2323 (2020).
  49. Shi, C. et al. PROTAC induced-BET protein degradation exhibits potent anti-osteosarcoma activity by triggering apoptosis. Cell Death Dis 10, 815 (2019).
  50. Winter, G. E. et al. Phthalimide conjugation as a strategy for in vivo target protein degradation. Science 348, 1376–1381 (2015).
  51. Bai, L. et al. Targeted degradation of BET proteins in triple-negative breast CancerSmall-molecule degraders of BET proteins in TNBC. Cancer research 77, 2476–2487 (2017).
  52. Noblejas-López, M. D. M. et al. Activity of BET-proteolysis targeting chimeric (PROTAC) compounds in triple negative breast cancer. J Exp Clin Cancer Res 38, 383 (2019).
  53. Qin, C. et al. Discovery of QCA570 as an exceptionally potent and efficacious proteolysis targeting chimera (PROTAC) degrader of the bromodomain and extra-terminal (BET) proteins capable of inducing complete and durable tumor regression. Journal of medicinal chemistry 61, 6685–6704 (2018).
  54. Cho, H., Jeon, S. I., Shim, M. K., Ahn, C.-H. & Kim, K. In situ albumin-binding and esterase-specifically cleaved BRD4-degrading PROTAC for targeted cancer therapy. Biomaterials 295, 122038 (2023).
  55. Qin, A.-C. et al. The therapeutic effect of the BRD4-degrading PROTAC A1874 in human colon cancer cells. Cell Death Dis 11, 805 (2020).
  56. He, Y. et al. Enhanced anti-glioma efficacy of doxorubicin with BRD4 PROTAC degrader using targeted nanoparticles. Mater Today Bio 16, 100423 (2022).
  57. Zhang, H. et al. Targeting BET Proteins With a PROTAC Molecule Elicits Potent Anticancer Activity in HCC Cells. Front Oncol 9, 1471 (2019).
  58. He, L., Chen, C., Gao, G., Xu, K. & Ma, Z. ARV-825-induced BRD4 protein degradation as a therapy for thyroid carcinoma. Aging (Albany NY) 12, 4547–4557 (2020).
  59. Sun, B. et al. BET protein proteolysis targeting chimera (PROTAC) exerts potent lethal activity against mantle cell lymphoma cells. Leukemia 32, 343–352 (2018).
  60. Saraswat, A. et al. Nanoformulation of PROteolysis TArgeting Chimera targeting ‘undruggable’ c-Myc for the treatment of pancreatic cancer. Nanomedicine (Lond) 15, 1761–1777 (2020).
  61. Lu, J. et al. Hijacking the E3 Ubiquitin Ligase Cereblon to Efficiently Target BRD4. Chem Biol 22, 755–763 (2015).
  62. Noblejas-López, M. D. M. et al. MZ1 co-operates with trastuzumab in HER2 positive breast cancer. J Exp Clin Cancer Res 40, 106 (2021).
  63. Mill, C. P. et al. RUNX1-targeted therapy for AML expressing somatic or germline mutation in RUNX1. Blood 134, 59–73 (2019).
  64. Hu, R. et al. Identification of a selective BRD4 PROTAC with potent antiproliferative effects in AR-positive prostate cancer based on a dual BET/PLK1 inhibitor. Eur J Med Chem 227, 113922 (2022).
  65. Tong, J. et al. BET protein degradation triggers DR5-mediated immunogenic cell death to suppress colorectal cancer and potentiate immune checkpoint blockade. Oncogene 40, 6566–6578 (2021).
  66. Ma, L. et al. BRD4 PROTAC degrader MZ1 exerts anticancer effects in acute myeloid leukemia by targeting c-Myc and ANP32B genes. Cancer Biol Ther 23, 1–15 (2022).
Interested in publishing your own research?
ESMED members can publish their research for free in our peer-reviewed journal.
Learn About Membership

Call for papers

Have a manuscript to publish in the society's journal?
